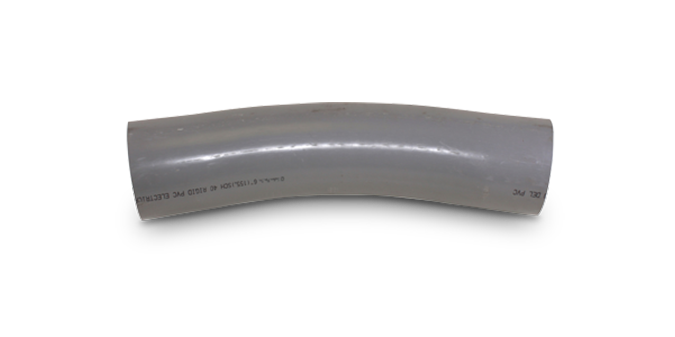

Kraloy 30° Standard Radius Elbows are manufactured from high impact, nonconducting and noncorroding rigid PVC. Elbows are suitable for exposed, concrete encased and direct burial applications, are lightweight and offer excellent chemical resistance with high tensile and impact strength.

FEATURES

  • Made from impact resistant Schedule 80 rigid nonmetallic PVC
  • Feature a plain end for use with nonmetallic solvent weld fittings
  • Approved for use in exposed, concrete encased and direct burial applications

Resources

PRODUCT CODE DRAWING PART NUMBER UPC SIZE RADIUS QUANTITIES
078648click to download80STD25306224547864862 1/2"1 EA
078649click to download80STD30306224547864933"1 EA
078644click to download80STD10306224547864481"1 EA
078650click to download80STD40306224547865094"1 EA
078651click to download80STD50306224540041155"1 EA
078646click to download80STD15306224547864621 1/2"1 EA
078645click to download80STD12306224547864551 1/4"1 EA
078642click to download80STD05306224547864241/2"1 EA
068560click to download80STD60306224546856046"1 EA
078643click to download80STD07306224547864313/4"1 EA
078647click to download80STD20306224547864792"1 EA

Related Products

90° – 36″ Special Radius Elbow Belled One End

Kraloy 90° Special Radius Elbows are manufactured from high impact, nonconducting and noncorroding rigid

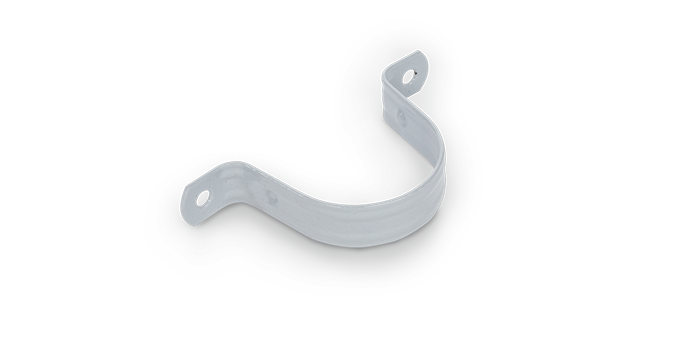

Conduit Clamp and Spacer

Conduit Clamps are engineered to accommodate proper expansion and contraction of PVC conduits and

45° – 36″ Special Radius Elbow Belled One End

Kraloy 45° Special Radius Elbows are manufactured from high impact, nonconducting and noncorroding rigid

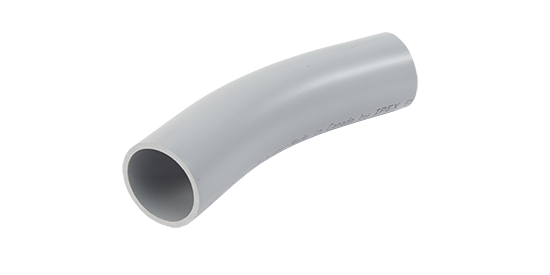

22½° – 30″ Special Radius Elbow Plain End
